Entdecken Sie die Welt der Musiktheorie Praktisch für die Datenspeicherung und -freigabe – Musiktheorie Handbuch mit 4.3/3.2/2.8In Screen 3G Vector Network Analyzer. Ideal für HF VHF UHF

Entdecken Sie das Potenzial des Praktisch für die Datenspeicherung und -freigabe 4.3/3.2/2.8In Screen 3G Vector Network Analyzers. Mit einer Vielzahl von Funktionen und einem breiten Frequenzbereich bis zu 900MHz ist dieses Gerät perfekt für Musiktheorie-Analysen und Radio-Designs. Seine robuste Konstruktion und präzisen Messungen machen es zum idealen Begleiter für HF, VHF und UHF-Anwendungen. Entdecken Sie jetzt die Welt der Funktechnologie mit diesem innovativen Analyzer.

Antenne : Radio

Marke : SEVOLY

Farbe : 2.8 Inch 900mhz

Produktbeschreibungen

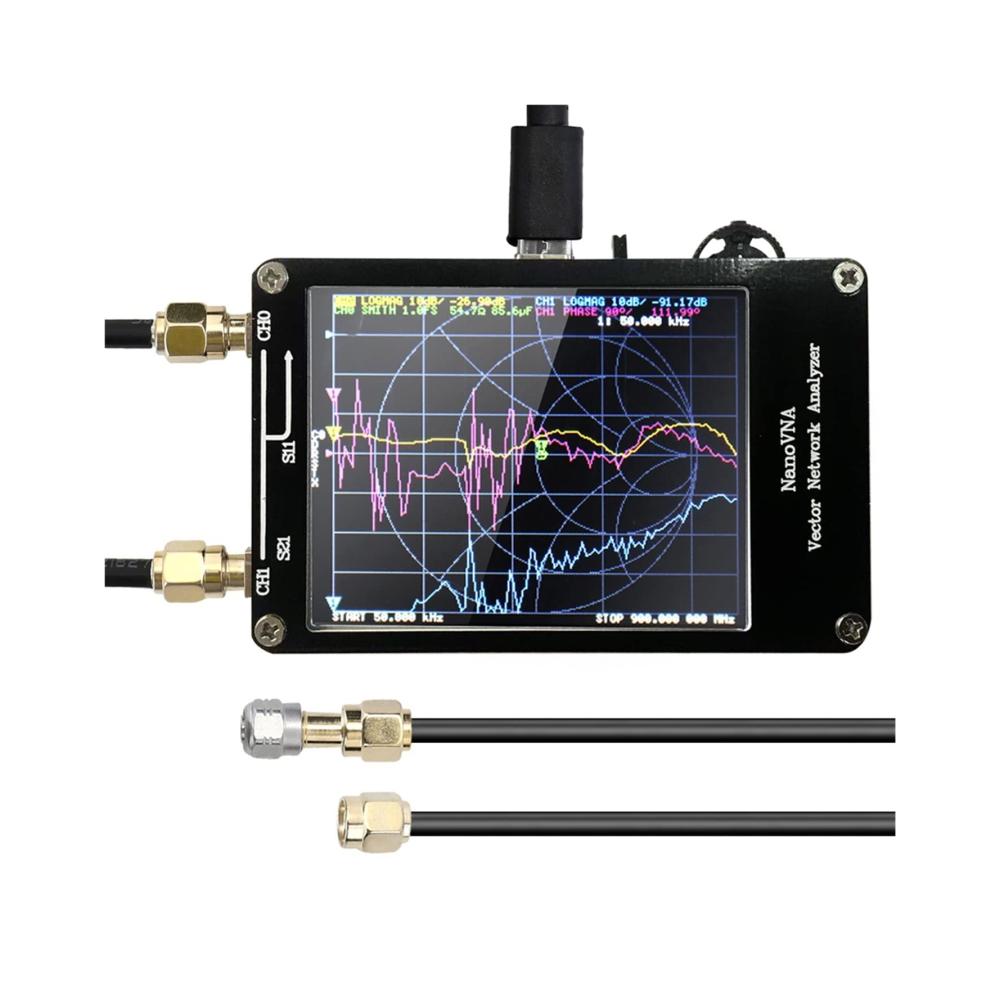

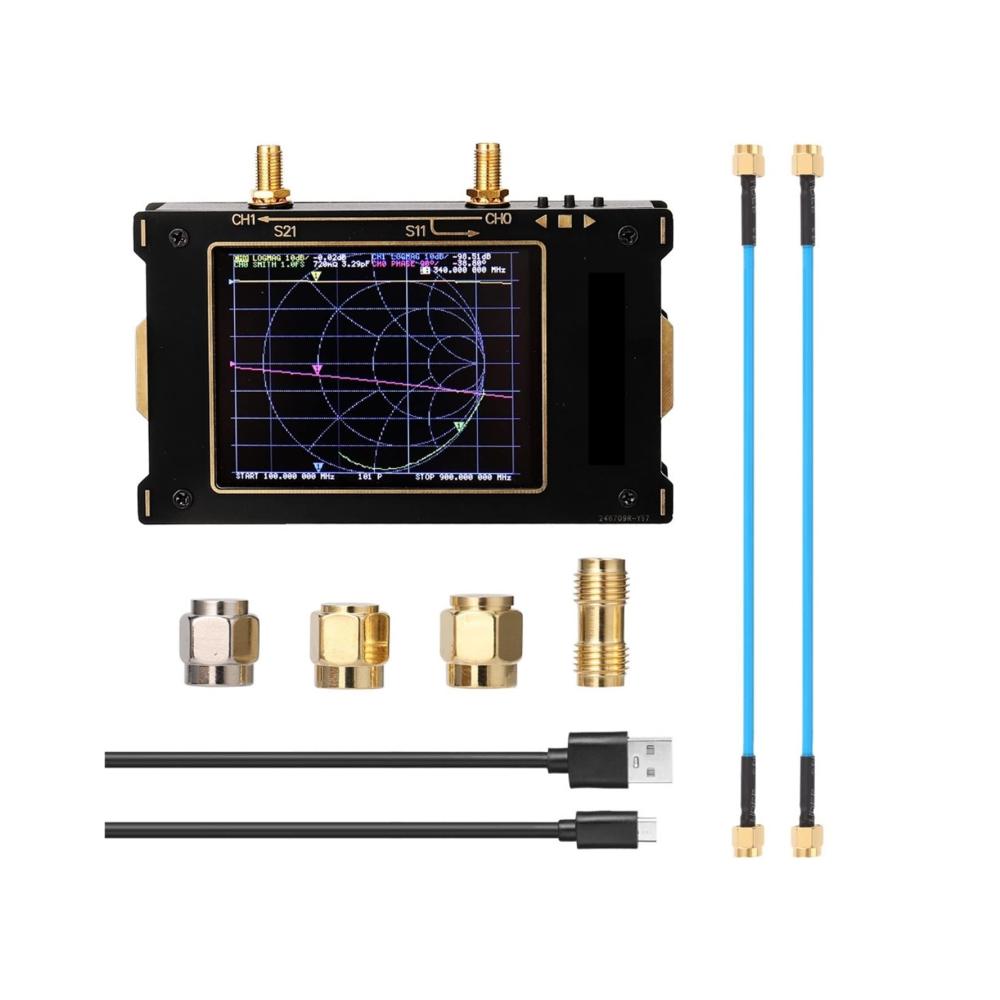

Material: PCBColor: blackMeasurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)RF output: -13dbm (maximum -9dbm)<;0.5ppmMeasurement ranges: 70dB (50KHz-300MHz), (50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)<;1.1Display: 2.8 inch TFT (320*240)USB interface: USB type-CCommunication mode: CDC (serial)Power: USB 5V 120mA, maximum recharging current 0.8ABattery: 1 * lithium battery, 600mAh (included)Number of calibration points: 101 (fixed)Number of scanning points: 101 (fixed)Display tracking: 4, Marking: 4, Setting save: 5PCB size: 85.5 * 54 * 11mm / 3.4 * 2.1 * 0.4in (without connectors and switches)Package size: 120 * 78 * 40mm / 4.7 * 3.1 * 1.6inPackage weight: 152g / 5.4ouncePackage list:1 * Host1 * USB Type-C Data Cable2 * 30mm SMA Male to Male Cable1 * SMA Female to Female Connector———————–Type 2:NanoVNA-F V2 portable vector network analyzer is a new product developed on the basis of NanoVNA-F. It uses a 4.3-inch IPS LCD display and an aluminum alloy case. It is equipped with a 5000mAh large-capacity lithium battery as standard. Support touching screen and side button operation, support Chinese and English interface. The design of this product is based on edy555’s NanoVNA and OwOcomm’s S-A-A V2, and deep optimization of the software is made on the basis of the previous product NanoVNA-F. The operation interface is compatible with NanoVNA-F, the measurement ranges is extended to 3GHz, and the dynamic ranges is larger. The measurement is more accurate and the operation is more convenient.Features:4.3-inch IPS LCD display, resolution 800*480, ultra-wide viewing angle, long-term use does not hurt your eyes.All aluminum alloy case, sturdy and durable

The PC control software can export Touchstone (snp) files, which can be used for various radio design and simulation software.

The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz.

The metal shield is designed to reduce the external interference and improve the measurement accuracy.

The 50k-300MHz frequency ranges of the si5351 direct output provides better than 70dB dynamic.

The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.
